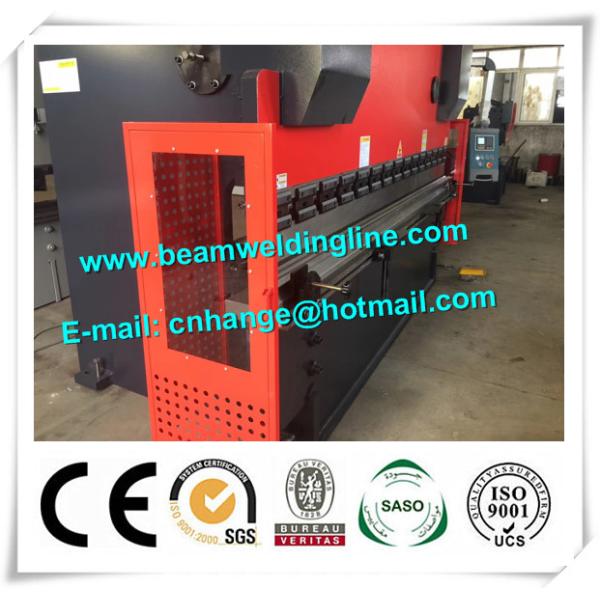

WC67Y 160T / 3200 Hydraulic Sheet Metal Brake For Plate / Press Brake For Hydraulic Press

Name: WC67Y 160T 3200 Hydraulic Sheet Metal Brake For Plate Press Brake For Hydraulic Press
Brand: FRIENDSHIP MACHINERY
Price: 1 USD

China WC67Y 160T / 3200 Hydraulic Sheet Metal Brake For Plate / Press Brake For Hydraulic Press wholesale

Brand Name : FRIENDSHIP MACHINERY

Model Number : WC67Y

Certification : CE, ISO

Place of Origin : CHINA

MOQ : 1

Delivery Time : 10 working days

Packaging Details : Wooden box

Bending method : Manual or Pneumatic

Molds : Two pcs

Foot switch : Include

Work-piece : Steel or Aluminum

Package : wooden box

Color : Red

Contact Now

WC67Y 160T / 3200 Hydraulic Sheet Metal Brake For Plate / Press Brake For Hydraulic Press

1. Technical parameters

Model		Units	WC67Y-160T/3200
The bended steel sheet strength		N/mm²	450
Nominal pressure		kN	1600
Worktable length		mm	3200
The distance between uprights		mm	2520
Throat depth		mm	400
Ram stroke		mm	200
Max opening height		mm	470
Gear pump	Model	/	CP0-25-P-10R
	Flow	L/min	25
	Pressure	MPa	31.5
Ram speed	Unloaded	mm/s	60
	Work	mm/s	8
	Return	mm/s	70
Working pressure of hydraulic system		Mpa	26
Main motor power		kW	11

2. The main features of E21 numerical control device

● E21 press brake numerical control device from Estun automation co., ltd.

● Positioning control of back gauge.

● Intelligent positioning control.

● One-side and two-side positioning which Eliminates spindle clearance effectively.

● Retract functions.

● Automatic reference searching.

● One-key parameter backup and restore.

● Fast position indexing.

● 40 programs storage space, each program has 25 steps.

3. Using environment

● The work voltage is 380V/ 50HZ/ 3P, the wave value ±10%.

● The environment temperature is 0℃-40℃, relative humidity: 20-80%, less ash, without harmful and corrosive gas, far away strong shock source and electromagnetic disturbance.

WC67Y 160T / 3200 Hydraulic Sheet Metal Brake For Plate / Press Brake For Hydraulic Press
